MATERIAL NUMBER:

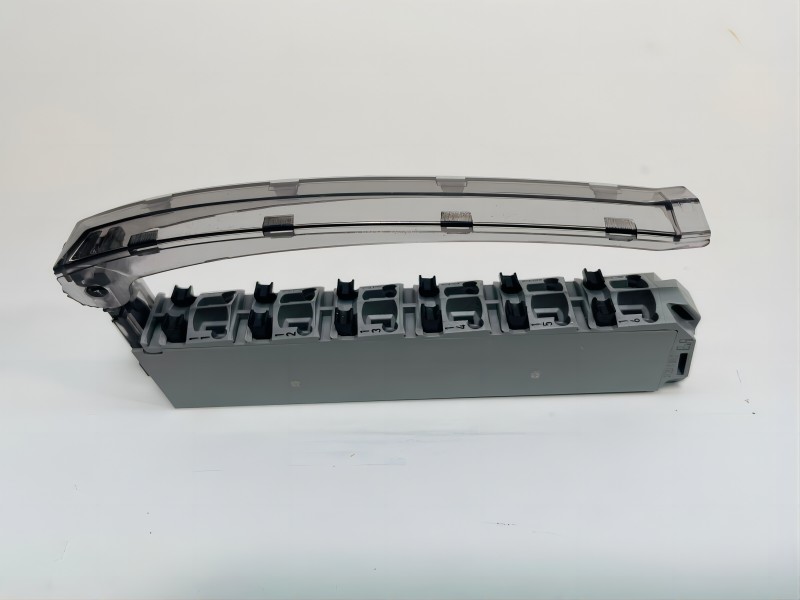

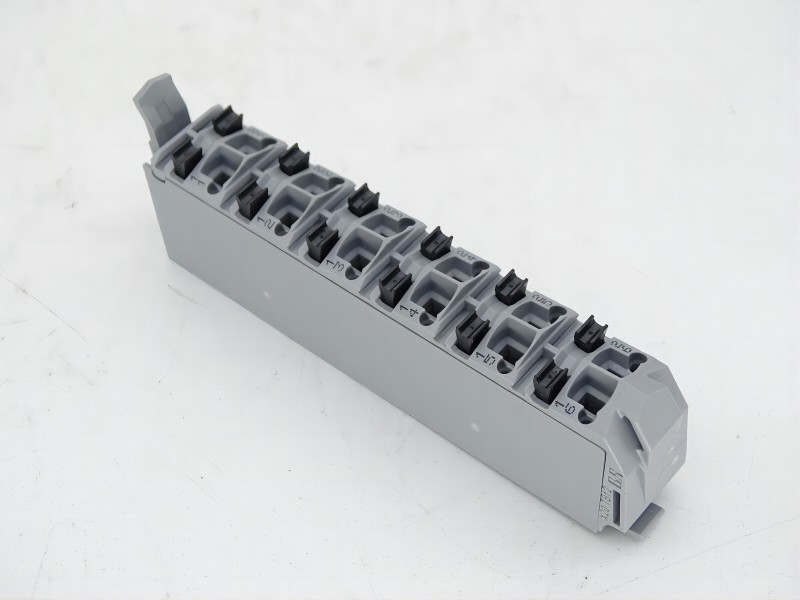

X20TB12
DESCRIPTION:
- Tool-free wiring with push-in technology
- Simple wire release using lever
- Ability to label each terminal
- Plain text labeling also possible
- Test access for standard probes
- Can be customer-coded

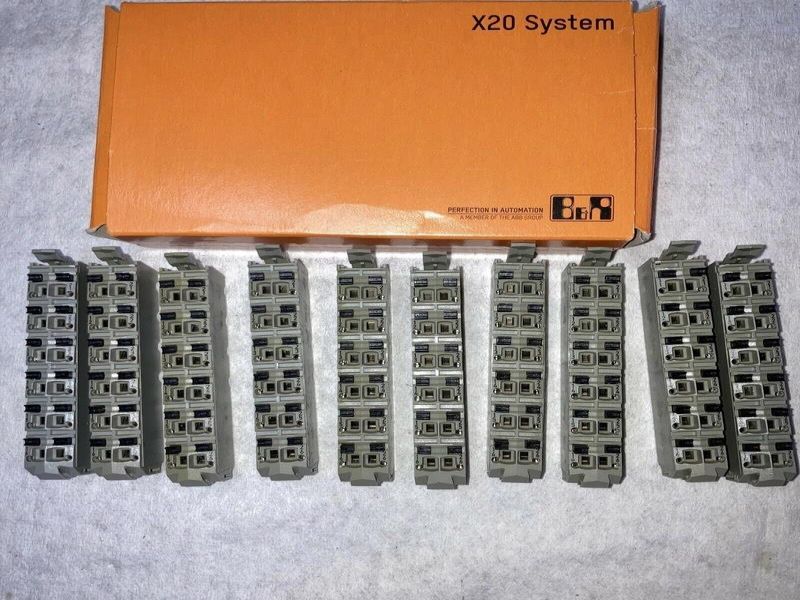

The X20 24 VDC modules are wired using the X20TB06 and X20TB12 terminal blocks.
General information
| Certifications | |
| CE | Yes |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| DNV | Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck) |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
Terminal block
| Number of pins | 12 |
| Type of terminal block | Push-in terminal |
| Push-in force per contact | Typ. 10 N |
| Cable type | Only copper wires (no aluminum wires!) |
| Wire stripping length | 7 to 9 mm |
| Connection cross section | |
| Solid wires | 0.08 to 2.50 mm² / 28 to 14 AWG |
| Fine-stranded wires | 0.25 to 2.50 mm² / 24 to 14 AWG |
| With wire end sleeves | 0.25 to 1.50 mm² / 24 to 16 AWG |
| With double wire end sleeves | Up to 2x 0.75 mm² |
| Distance between contacts | |
| Left - Right | 4.2 mm |
| Above - Below | 10.96 mm |
Electrical properties
| Nominal voltage | 240 VAC / 48 VDC |
| Max. voltage | 300 VAC / 60 VDC |
| Nominal current | 10 A / contact |
| Contact resistance | ≤5 mΩ |
Ambient conditions
| Temperature | |
| Operation | Corresponds to the X20 module used |
| Relative humidity | |
| Operation | Corresponds to the X20 module used |
