English
MATERIAL NUMBER:

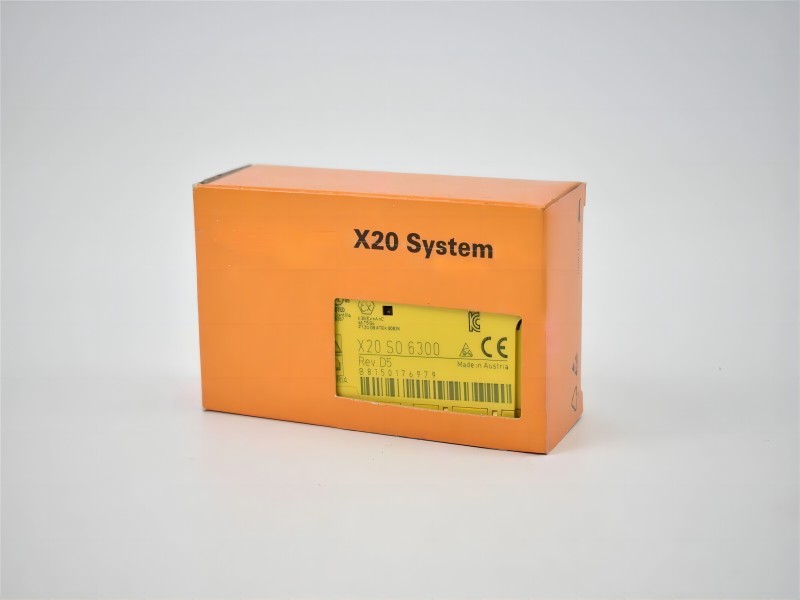

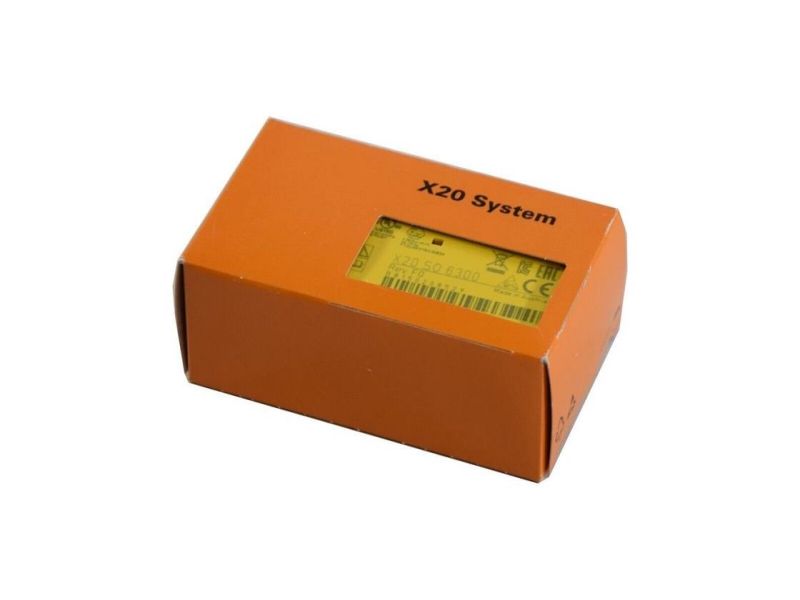

X20SO6300
DESCRIPTION:
- 6 safe digital outputs with 0.2 A
- Source circuit
- Output type B
- Integrated output protection
This module is equipped with 6 safe digital outputs. The nominal output current is 0.2 A.
The module can be used for controlling actuators in safety-related applications up to PL e or SIL 3.
The outputs are designed using semiconductor technology so that the safety-related characteristics do not depend on the number of operating cycles. The "high-side high-side" variant (output type B) is required for actuators with reference potential (e.g. Enable inputs on frequency inverters). It is important to observe the special notices for the cabling in this case. Safe digital output channels provide protection against automatic restart when network errors occur.
This module is designed for X20 12-pin terminal blocks.
Short description
| I/O module | 6 safe type B1 digital outputs, 24 VDC, 0.2 A, OSSD <10 µs |
General information
| B&R ID code | 0xB815 |
| System requirements | |
| Automation Studio | 3.0.81.15 or later |
| Automation Runtime | 3.00 or later |
| SafeDESIGNER | 2.70 or later |
| Safety Release | 1.2 or later |
| mapp Technology Package | mapp Safety 5.7.0 or later |
| Status indicators | I/O function per channel, operating state, module status |
| Diagnostics | |
| Module run/error | Yes, using LED status indicator and software |
| Outputs | Yes, using LED status indicator and software |
| Blackout mode | |
| Scope | Module |
| Function | Module functionality |
| Standalone mode | No |
| Max. I/O cycle time | 1 ms |
| Power consumption | |
| Bus | 0.32 W |
| Internal I/O | 1.4 W |
| Additional power dissipation caused by actuators (resistive) [W] | 1.128 |
| Electrical isolation | |
| Channel - Bus | Yes |
| Channel - Channel | No |
| Certifications | |
| CE | Yes |
| Functional safety | cULus FSPC E361559 Energy and industrial systems Certified for functional safety ANSI UL 1998:2013 |
| Functional safety | IEC 61508:2010, SIL 3 EN 62061:2013, SIL 3 EN ISO 13849-1:2015, Cat. 4 / PL e IEC 61511:2004, SIL 3 |
| Functional safety | EN 50156-1:2004 |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | In preparation |
| EAC | Yes |
| KC | Yes |
Safety characteristics
| EN ISO 13849-1:2015 | |
| Category | Cat. 3 if parameter "Disable OSSD = Yes - Warning", Cat. 4 if parameter "Disable OSSD = No" |
| PL | PL d if parameter "Disable OSSD = Yes - Warning", PL e if parameter "Disable OSSD = No" |
| DC | >60% if parameter "Disable OSSD = Yes - Warning", >94% if parameter "Disable OSSD = No" |
| MTTFD | 2500 years |
| Mission time | Max. 20 years |
| IEC 61508:2010, IEC 61511:2004, EN 62061:2013 |
|
| SIL CL | SIL 2 if parameter "Disable OSSD = Yes - Warning", SIL 3 if parameter "Disable OSSD = No" |
| SFF | >60% if parameter "Disable OSSD = Yes - Warning", >90% if parameter "Disable OSSD = No" |
| PFH / PFHd | |
| Per channel | <1*10-10 |
| openSAFETY wired | Negligible |
| openSAFETY wireless | <1*10-14* Number of openSAFETY packets per hour |
| PFD | <2*10-5 |
| Proof test interval (PT) | 20 years |
I/O power supply
| Nominal voltage | 24 VDC |
| Voltage range | 24 VDC -15% / +20% |
| Integrated protection | Reverse polarity protection |
Safe digital outputs
| Quantity | 6 |
| Variant | FET, 2x positive switching, type B1, output level readable |
| Nominal voltage | 24 VDC |
| Nominal output current | 0.2 A |
| Total nominal current | 1.2 A |
| Output protection | See section "Inrush current behavior for output channels". |
| Braking voltage when switching off inductive loads | Max. 45 VDC |
| Error detection time | 1 s |
| Insulation voltage between channel and bus | 500 Veff |
| Peak short-circuit current | See section "Inrush current behavior for output channels". |
| Leakage current when the output is switched off | <100 µA |
| RDS(on) | 4.7 Ω |
| Switching voltage | I/O power supply minus voltage drop due to RDS(on) |
| Max. switching frequency | See section "Inrush current behavior for output channels". |
| Test pulse length | Max. 10 µs |
| Max. capacitive load | 100 nF |
Current on loss of ground
| IOUT | <100 µA |
| IGND | <70 mA |
Operating conditions
| Mounting orientation | |
| Horizontal | Yes |
| Vertical | Yes |
| Installation elevation above sea level | 0 to 2000 m, no limitation |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature | |
| Operation | |
| Horizontal mounting orientation | 0 to 60°C |
| Vertical mounting orientation | 0 to 50°C |
| Derating | See section "Derating". |
| Storage | -40 to 85°C |
| Transport | -40 to 85°C |
| Relative humidity | |
| Operation | 5 to 95%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x safety-keyed terminal block separately. Order 1x safety-keyed bus module separately. |
| Pitch | 25+0.2mm |
